For the check to be accurate, the steering must not be turned once the engine has been stopped

Before you start

Power steering fluid level

Weekly checks 0•15

• Make sure that the car is on level ground.

• Set the steering wheel straight-ahead.

• The engine should be turned off.

Safety first!

• The need for frequent topping-up indicates a leak, which should be investigated immediately.

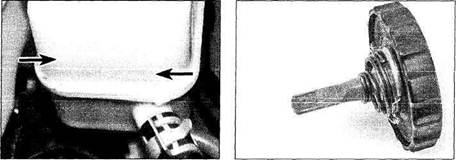

₁The reservoir is mounted on the right-hand side of the engine compartment. The HOT and COLD levels are marked on the reservoir (arrowed)...

₃With the engine stopped check the level through the side of the reservoir, or dip the fluid with the reservoir cap/dipstick by screwing it fully back into place. When

the engine is cold, the fluid level should be between the between the COLD marks; when hot it should be between the HOT marks. Add fluid if necessary.

₂... whilst on others, it's necessary

to unscrew the cap/dipstick from the reservoir. Wipe clean the area around the reservoir filler neck, before unscrewing the

filler cap/dipstick from the reservoir.

₄When topping-up, use the specified type of fluid - do not overfill the reservoir. When the level is correct, securely refit the cap.
