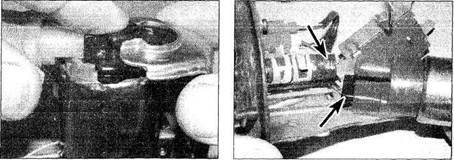

Improvise a tool to unscrew the plastic collar

Disconnect the fuel hose and wiring plug from the pump (arrowed)

Pull the lower end of the pump from the bracket

TMC (Toyota Motor Co) manufactured

VVT-i engines

16 Remove the fuel tank cap.

3.6 Undo the pump/sender unit cover retaining bolts

terminal of the battery (see Chapter 5A).

18 Remove the rear seat cushion, and lift the

carpet underneath it (see Chapter 11).

19 Using a flat-bladed tool, carefully prise up

3.7 Carefully lift the pump/sender unit from the tank

4A•4 Fuel and exhaust systems

the fuel pump/sender unit access cover (see illustration 3.4).

20 Disconnect the electrical connector, and disconnect the fuel pipe(s) (see illus-trations 3.5a, 3.5b and 3.5c).

21 Remove the fuel pump/sender unit retaining bolts (see illustration 3.6).

22 Carefully withdraw the fuel pump/fuel level sender unit assembly from the fuel tank.

23 Undo the screw and disconnect the earth wire from the pump earth clamp.

24 Disconnect the pump wiring connector, then ease the lower end of the pump from the bracket, and remove the rubber cushion from the bracket.

25 Disconnect the fuel hose, and remove the pump.

26 Prise out the clip and remove the filter from the base of the pump.

27 Refitting is the reverse of removal.
