A Release the air cleaner cover clips 8.1b . and twin headlight models

Inspection

1 Once in a while, you will have to raise the vehicle to service or renew some component

(an exhaust pipe mounting, for example). Whenever you work under the vehicle, always inspect fuel pipes and all fittings and connections for damage or deterioration.

2 Check all hoses and pipes for cracks, kinks, deformation or obstructions.

3 Make sure all hoses and pipe clips attach their associated hoses or pipes securely to the underside of the vehicle.

4 Verify all hose clamps attaching rubber hoses to metal fuel pipes or pipes are snug enough to assure a tight fit between the hoses and pipes.

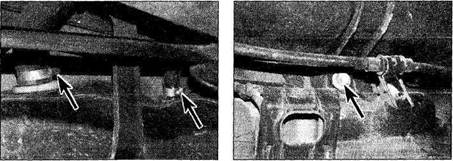

6.6 Slacken the clamps (arrowed) and	6.7 Remove the fuel retaining strap bolts
disconnect the fuel filler and breather	(left-hand bolt arrowed)
hoses

4A•6 Fuel and exhaust systems

- single headlight models...

8.2a Undo the three air cleaner housing	8.2b... and disconnect the intake hose
bolts (arrowed)...
