Telephone receivers




Piezoelectric transmitter

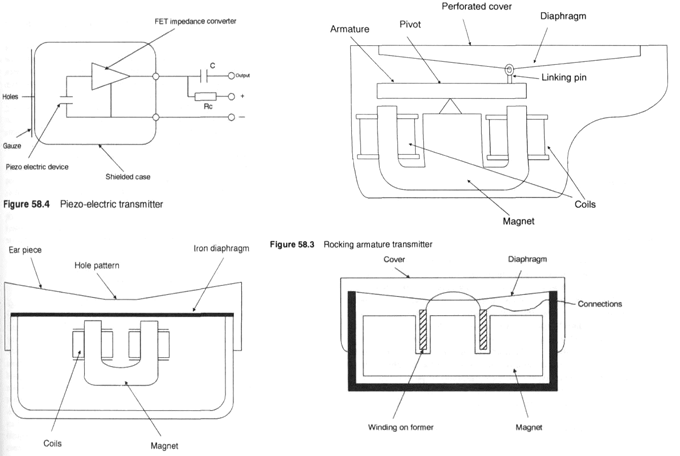

Piezo-electric transmitters work on the principle that certain types of quartz crystals become electrically polarised when subjected to pressure from sound waves. Sound impinges on the disc of piezo material, causing the disc to be stressed, varying the charge on the capacitor within the disc, which in turn varies the gate voltage of the FET impedance conversion amplifier, shown in Figure 58.4. The disc and the FET are all housed in a pressed aluminium casing. The apertures at the front of the transmitter have variable hole patterns which are selected to improve the frequency response of the unit.


Like telephone transmitters, telephone receivers have been de­signed using numerous principles, but the earliest type tended to be electromagnetic as shown in Figure 58.5.

An electromagnet winding terminates the telephone line and picks up the a.c. signals from the line, varying the magnetic field. The thin iron diaphragm, held in close proximity to the ends of the magnetic poles, is moved to and from the poles of the electromagnet. The the current detected in the coils the closer the diaphragm is pulled to the poles of the magnet. The diaphragm therefore vibrates in unison with the received speech signal.
