Oil Pan and Relief Valve

ENGINE LUBRICATION SYSTEM

If the engine oil gets extremely low or if the oil pump or oil passages clog up or otherwise do not function properly, the oil pressure warning light will light. If this light stays on when the engine is running above idle speed, stop the engine immediately and find the cause.

NOTE

Racing the engine before the oil reaches every part can cause engine seizure.

• If the motorcycle has just been used, wait several minutes for all the oil to drain down.

• Situate the motorcycle so that it is perpendicular to the ground, and check the engine oil level through the oil level gauge.

•The oil level should come up between the upper [A] and lower level lines [B].

• If the oil level is too high, remove the excess oil, using a syringe or some other suitable device.

• If the oil level is too low, add the correct amount of oil through the oil filler opening. Use the same type and make of oil that is already in the engine.

OIf the engine oil type and make are unknown, use any brand of the specified oil to top up the level in preference to running the engine with the oil level low. Then at your earliest convenience, change the oil completely.

CAUTION

Engine Oil Change

• Refer to the Engine Oil Change in the Periodic Mainte­
nance chapter.

Oil Filter Replacement

• Refer to the Oil Filter Replacement in the Periodic Main­
tenance chapter.

Oil Pan Removal

• Drain the engine oil (see Engine Oil Change in the Peri­odic Maintenance chapter).

• Remove the engine guard (see Engine Guard Removal in the Frame chapter).

• Disconnect the oil pressure switch lead.

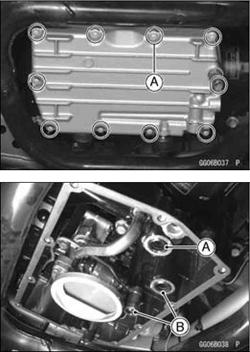

• Remove the oil pan mounting bolts [A] and the oil pan from the crankcase.

Oil Pan Installation

• Check that the O-rings for the outlet side [A] and inlet side
[B] are in good condition.

• If they are damaged, replace them with new ones.
OThe O-rings between the oil pan and the lower case oil

passage must be installed so that flat side faces the lower case oil passage.

• Apply a small amount of engine oil to the O-rings.

• Install the oil pan and tighten its mounting bolts.

Torque-Oil Pan Mounting Bolts: 11 N-m(1.1 kgf-m,95ft-lb)

• Connect the oil pressure switch lead.

Torque -Oil Pressure Switch Terminal Bolt: 1.5 N-m (0.15 kgf-m, 13 in-lb)

• Fill the engine with the specified oil.

Relief Valve Removal

• Remove the oil pan (see Oil Pan Removal).

• Remove the relief valve [A] from the oil passage on the oil pan.
