About the time graph

About the Timeline panel

Animating the composition

So far, you’ve started a project, created a composition, imported footage, and applied some effects. It all looks great, but how about some movement? You’ve applied only static effects.

In After Effects, you can change any combination of a layer’s properties over time using conventional keyframing, expressions, or keyframe assistants. You’ll explore many of these methods throughout the lessons of this book. For this exercise, you will animate the Position property of a text layer using keyframes, and then use an animation preset so that the letters appear to rain down on the screen.

Use the Timeline panel to animate layer properties and set In and Out points for a layer. (In and Out points are the points at which a layer begins and ends in the composition.) Many of the Timeline panel controls are organized in columns of related functions. By default, the Timeline panel contains a number of columns and controls, as shown in the following figure:

The time graph portion of the Timeline panel (the right side) contains a time ruler, markers to indicate specific times, and duration bars for the layers in your composition.

_ Note: When you click the Graph Editor button () in the Timeline panel, the layer bars in the time ruler are replaced with the Graph Editor. You’ll learn more about the Graph Editor in Lesson 6, “Animating Layers.”

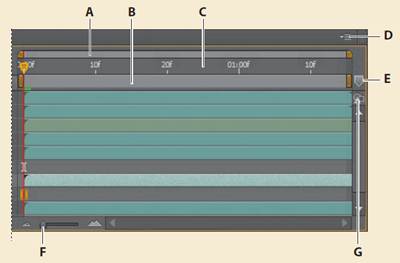

A. Time navigator start and end brackets B. Work area start and end brackets C. Time ruler D. Timeline panel menu E. Composition marker bin F. Time zoom slider G. Composition button

Before delving too deeply into animation, it will help to understand at least some of these controls. The duration of a composition, a layer, or a footage item is represented visually in the time graph. On the time ruler, the current-time indicator marks the frame you are viewing or editing, and the frame appears in the Composition panel.

The work area start and end brackets indicate the part of the composition that will be rendered for previews or final output. When you work on a composition, you may want to render only a portion of it by specifying a segment of the composition time ruler as a work area.

A composition’s current time appears in the upper-left corner of the Timeline panel. To move to a different time, drag the current-time indicator in the time ruler or click the current-time field in the Timeline panel or Composition panel, type a new time, and click OK.

For more information about the Timeline panel, see After Effects Help.
