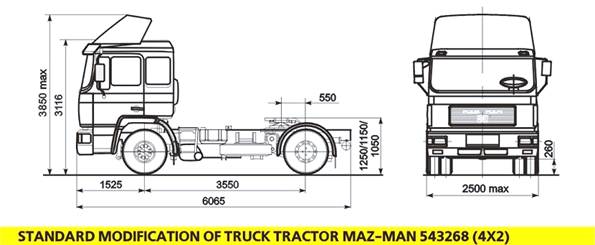

Specification of the Truck Tractor MAZ-MAN 543268

Technical parameters	Gross mass of truck trailer - 40 000 kg (up 1o 44 000 kg)
	Equipped truck mass - 7 250 kg
	Fifth wheel load - up to 11 200 kg
Engine	MAN D 2866 LF 25 (LF 31); EURO3 (EURO-2)
	Engine power - 301 kw (410 h.p.)
	Electronic control of fuel feed (EDC)
Clutch	dry clutch, hydraulic drive, pneumatic support
Drive	Anti-lock brake system (ABS)
	Anti-slippage system (ASR)
	Speed limiter
Frame	Standard, heavy duty, cold riveted
	HD - Heavy Duty, SHD - Super Heavy Duty
Suspension	Front - three-leaf springs with hydraulic shock-absorbers
	Rear - two air springs pneumatic suspension with hydraulic shock- absorbers
	ECAS system - automatic adjustment of rear suspension
Brakes	Dual circuit pneumatic braking system with drum (disk) brakes
	Air-heated dehumidifier for brakes
	Pneumatic low noise exhaust valve brake
Electrical equipment	Alternator 28V/100A (2800 W) for Euro-3 engine or 28V/80A (2240 W) for Euro-2 engine
	Twin halogen headlights
	Additional halogen and fog lights
Fuel system	Fuel tank 500 1 (700 1) with screen filter
	Heated main fuel filter
Wheels	Tires 315/80R22.5 of West European origin
Accessories	Standard tool kit (fire-extinguisher, first-aid kit, anti-rolling shoe, etc.) Additional tool box on frame
Certificates	Certificate "3" - "Euro-Euro-3 safe truck" options are available
