Side Covers

FRAME

Fairing

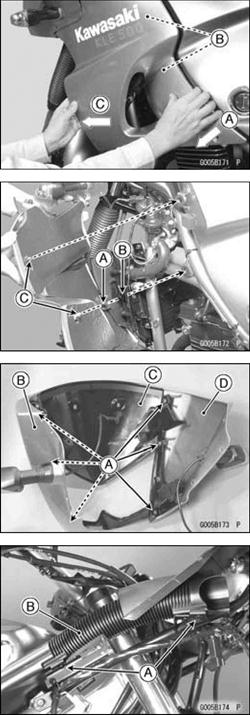

Lower Fairings Removal Remove the fairing mounting screws [A] in both side.

• Pull the rear side [A] of the fairing a little to outside to clear the stoppers [B] and then remove the fairing pushing [C] it to forward.

Lower Fairings Installation

• Insert the fairing hole [A] into the drawing mounting

bracket pipe [B] from front side, and push the fairing from

outside to inside to fit the stoppers [C].

Install the screws.

Upper Fairing Removal

• Remove the headlight unit/housing (see Headlight Unit/Housing Removal in the Electrical System chapter).

• Remove the screws [A], and separate the left [B], center [C] and right [D] upper fairing each other.

Air Duct Removal

• Remove the headlight unit/housing (see Headlight Unit/Housing Removal in the Electrical System chapter).

• Remove the air duct mounting screws [A], and remove the air ducts [B].

Right Side Cover Removal

• Insert the ignition switch key [A] into the seat lock.

• Turn the ignition switch key clockwise and pull the front of side cover outward to clear the stopper [B]. Remove the right side cover [C] pulling it forward.

Right Side Cover Installation

• Align the projection [A] of the sidecover to the notch [B] of the frame, and push it to backward and then insert the stopper.

• Turn the ignition switch key counterclockwise to lock the seat lock.

Left Side Cover Removal

• Remove the screw [A] and pull the front of side cover

outward to clear the stopper [B].

Remove the left side cover [C] pulling it forward.

Left Side Cover Installation

• Align the projection [A] of the side cover to the notch [B]

of the frame, and push it to backward and then insert the

stopper.

Screw in the side cover mounting screw.
