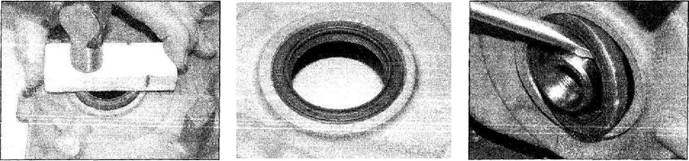

Gently drive the new seal into place with the spring side fitted towards the engine

A Wrap tape around the screwdriver tip and pry the crankshaft oil seal out

VVT-i engines

Pull the oil control valve filter from the cylinder head

B The seal may be removed more easily by carefully cutting the lip as indicated

4 Using a socket with an outside diameter slightly smaller than the outside diameter of the seal, carefully drive the new seal into place (see illustration). Make sure it's installedsquarely and driven in to the same depth as the original. If a socket isn't available, a short section of large diameter pipe will also work.

5 Refit the crankshaft sprocket and timing belt (see Section 5).

6 Run the engine and check for oil leaks at the seal.

7 If the timing chain cover has been removed(part of the timing chain removal procedure), the seal can simply be driven from the cover using a hammer and punch. The new seal can then be fitted into place (spring towards the engine internals) using a block of wood and a hammer.

The seal should be fitted with its outside edge flush with the timing cover (see illustrations).
