Aircraft vectoring procedures

Aircraft Acknowledgments

Panel Signals

Body Signals

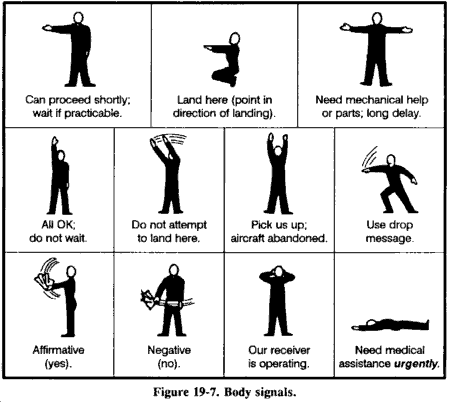

When an aircraft is close enough for the pilot to see you clearly, use body movements or positions (Figure 19-7) to convey a message.

If you have a life raft cover or sail, or a suitable substitute, use the symbols shown in Figure 19-8 to convey a message.

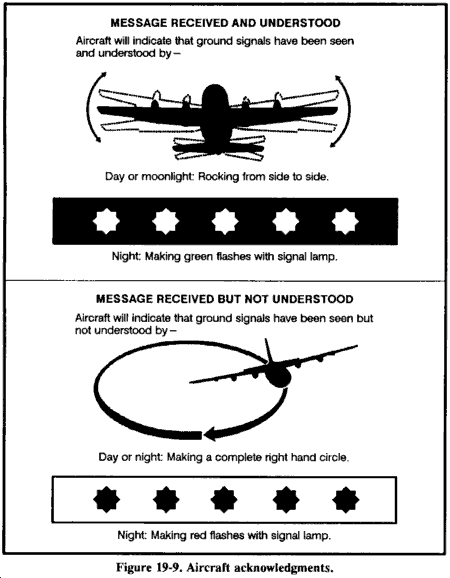

Once the pilot of a fixed-wing aircraft has sighted you, he will normally indicate he has seen you by flying low, moving the plane, and flashing lights as shown in Figure 19-9. Be ready to relay other messages to the pilot once he acknowledges that he received and understood your first message. Use a radio, if possible, to relay further messages. If no radio is available, use the codes covered in the previous paragraphs.

If you can contact a friendly aircraft with a radio, guide the pilot to your location. Use the following general format to guide the pilot:

• Mayday, Mayday.
• Call sign (if any).
• Name.
• Location.
• Number of survivors.
• Available landing sites.
• Any remarks such as medical aid or other specific types of help needed immediately.

Simply because you have made contact with rescuers does not mean you are safe. Follow instructions and continue to use sound survival and evasion techniques until you are actually rescued.
