Sprocket, Coupling. О If a sprocket requires replacement, the chain is proba­bly worn also

FINAL DRIVE 11-11

NOTE

О If a sprocket requires replacement, the chain is proba­bly worn also. When replacing a sprocket, inspect the chain.

Rear Sprocket Warp Inspection

• Raise the rear wheel off the ground so that it will turn freely.

• Set a dial gauge [A] against the rear sprocket [B] near the teeth as shown, and rotate [C] the rear wheel to measure the sprocket runout (warp). The difference between the highest and lowest dial gauge readings is the amount of runout (warp).

• If the runout exceeds the service limit, replace the rear sprocket.

Rear Sprocket Warp
Standard: less than 0.4 mm (0.016 in.)

Service Limit: 0.5 mm (0.020 in.)

Coupling Bearing Removal • Remove:

Coupling [A]

Collar [B]

Sleeve [C]

Circlip [D]

• Remove the bearing by tapping from the hub side.

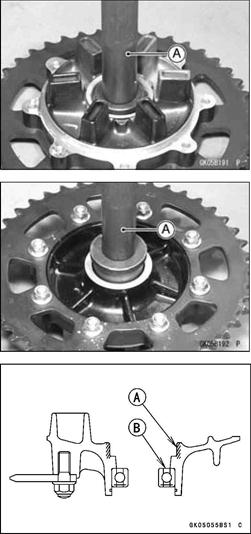

Special Tool - Bearing Driver Set: 57001-1129 [A]

Coupling Bearing Installation

• Replace the bearing with a new one.

• Press in the bearing until it is bottomed.

Special Tool - Bearing Driver Set: 57001-1129 [A]

• Pack the bearing with high temperature grease.

• Replacethecirclipwithanewone.

Coupling Installation • Grease the following and install the coupling. Coupling Internal Surface [A] Ball Bearing [B]

Special Tool - Inside Circlip Pliers: 57001-143

Coupling Bearing Inspection and Lubrication
