Footpeg (from Top of the footpeg to Top of the brake Pedal)

Brake Lever and Brake Pedal

BRAKES

Special Tool

BRAKES 12-7

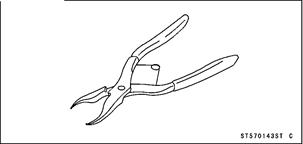

Inside Circlip Pliers: 57001-143

Brake Lever Position Adjustment

The adjuster has 4 positions so that the brake lever posi­tion can be adjusted to suit the operator’s hand. • Push the lever forward and turn the adjuster [A] to align

the number with the Arrow mark [B] on the lever holder. ○The distance from the grip to the released lever is mini­mum at Number 4 and maximum at number 1.

Brake Pedal Position Inspection

• With the brake pedal [A] in the correct position, inspect
the brake pedal position [B] as shown.

Footpeg [C]

Pedal Position
Standard: 30 ~ 40 mm (1.2 -1.6 in.) below

• If it is incorrect, adjust the brake pedal position.

Brake Pedal Position Adjustment

О Usually it is not necessary to adjust the pedal position, but always adjust it when push rod locknut has been loosened.

• Loosen the locknut [A], and turn the push rod [B] in or out to adjust the brake pedal position.

• Tighten the locknut.

• After adjusting brake pedal position, check the rear brake light switch timing, and adjust them if necessary (see Brake Light Switch Operation Inspection in the Periodic Maintenance chapter).

Brake Pedal and Shaft Removal

• Remove the front right footpeg bolt [A].

• Remove the brake pedal bolt [B], and remove the brake pedal.

• Remove the cotter pin [C], and pull out the pin [D] to sepa­rate the brake pedal shaft and master cylinder brake rod.
