Approx. 453 mL (15.31 US oz.)

Front Fork

SUSPENSION

Special Tools and Sealant

SUSPENSION 13-7

Fork Cylinder Holder Handle: 57001-183

Fork Outer Tube Weight: 57001-1218

			р			ST571218ST С
^Ю_

Fork Cylinder Holder Adapter: 57001-1057

Front Fork Oil Seal Driver: 57001-1219

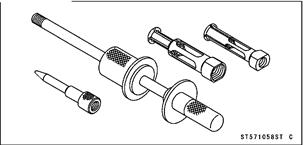

Oil Seal & Bearing Remover: 57001-1058

Jack: 57001-1238

Hook Wrench R37.5, R42: 57001-1101

Fork Oil Level Gauge: 57001-1290

Bearing Driver Set: 57001-1129

Front Fork Oil Change

• Remove the front fork (see Front Fork Removal).

• Remove the fork boot from the front fork.

• Hold the outer tube vertically in a vise.

• Remove:

Top Bolt [A] and O-ring [B] Spacer [C] Fork Spring Seat [D] Fork Spring [E]

• Pour out the fork oil [A] with the fork upside down.

• Fillthefrontforkwiththespecifiedoil.

Fork Oil Viscosity: KAYABA KHL34-G10 or equivalent

Fork Oil Capacity (when changing oil):

• Wait for about five minutes so that any suspended air bub­bles can surface.

Measure the oil level, using the fork oil level gauge [A].

Special Tool - Fork Oil Level Gauge: 57001-1290

OSet the gauge stopper [B] so that its lower side shows the

oil level distance specified [C]. OInsert the gauge tube into the inner tube [D] and position

the stopper across the top of the inner tube [E]. OPull the handle slowly to draw out the excess oil until no

more oil comes up the tube.

• If no oil is drawn out, there is not enough oil in the fork.
Pour in some more oil, then draw out the excess.

Front Fork Oil Level (Fully compressed without fork spring) Standard: 194 ±2 mm (7.64 ±0.08 in.)

• Install the fork spring with the smaller diameter end [A] facing down.

• Install:

Fork Spring Seat Spacer

• Install the top bolt with a specified torque.

Torque - Front Fork Top Bolt: 30 N-m (3.1 kgf-m, 22 ft-lb)

• Install the fork boot to the front fork.

• Install the front fork (see Front Fork Installation). Repeat the same procedure for another front fork.
