Specifications. No. Fastener Torque Remarks

SUSPENSION

Exploded View

SUSPENSION 13-5

Exploded View

SUSPENSION

Exploded View

No.	Fastener	Torque	Remarks
N-m	kgf-m	ft-lb
	Front Fork Upper Clamp Bolts		2.5		S
	Front Fork Lower Clamp Bolts		2.3	16.5
	Front Fork Top Bolts		3.1
	Front Fork Bottom Allen Bolts		3.1		L

FO: Apply front oil.

G: Apply grease.

L: Apply a non-permanent locking agent.

R: Replacement Parts

S: Follow the specific tightening sequence. SS: Apply Silicone Sealant.

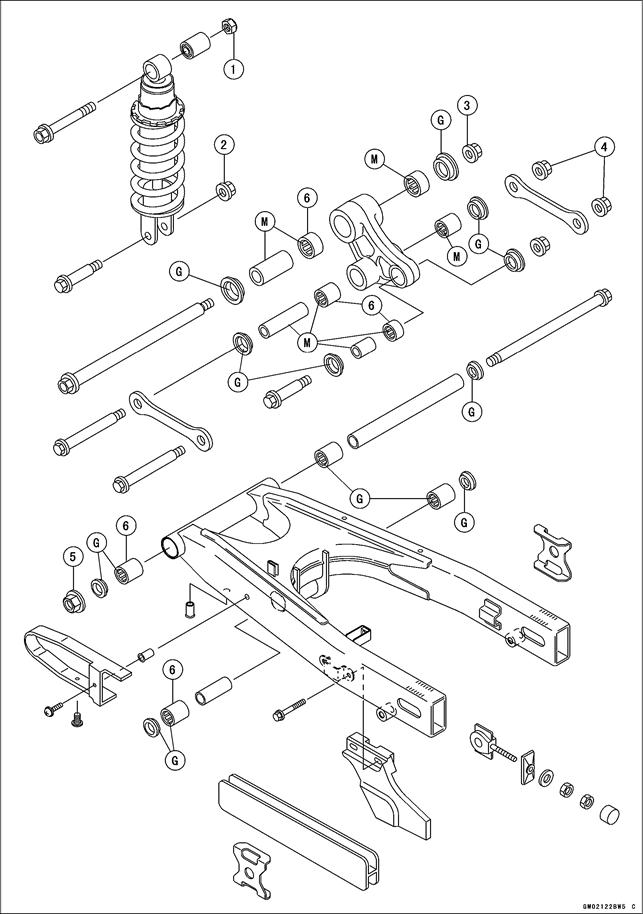

No.	Fastener	Torque	Remarks
N-m	kgf-m	ft-lb
	Rear Shock Absorber Upper Mounting Nut		6.0
	Rear Shock Absorber Lower Mounting Nut
	Rocker Arm Pivot Nut
	Tie-rod Mounting Nuts
	Swingarm Pivot Nut

6. Needle Bearings: Face the mark side of it to outside.

G: Apply grease.

M: Apply molybdenum dislfide grease.

Item	Standard	Service Limit
Front Fork (per one unit) Fork Inner Tube Diameter Fork Spring Setting Air Pressure Rebound Damper Setting Compression Damper Setting Fork Oil Viscosity Fork Oil Capacity: Completely Dry When Changing Oil Fork Oil Level Fork Spring Free Length	041 mm (1.61 in.) Non-adjustable 0 kPa (Adjustable) Non-adjustable Non-adjustable KAYABA KHL34-G10 or equivalent 530 ±4 mL (17.91 ±0.14 US oz.) approx. 453 mL (5.31 US oz.) Fully compressed, without fork spring, below from inner tube top 194 ±2 mm (7.64 ±0.08 in.) 522.5 mm (20.57 in.)	––– ––– ––– ––– ––– ––– ––– ––– ––– 512 mm (20.16 in.)
Rear Shock Absorber Rebound Damper Set Compression Damper Set Spring Setting Position Gas Pressure	Non-adjustable Non-adjustable No. 2 of 5 positions 980 kPa (10 kgf/cm²)	----------------
