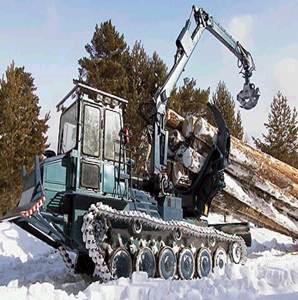

Basic model of skidder ML-107

to cut to bunch   stem stump brushwood plantation vehicle water-logged ford trench wall (зд.) specific ground pressure loading moment KN-m deg (degree) roll

рубить, валить (лес) пакетировать, окучивать (лесоматериалы для последующей трелевки) ствол пень кустарник насаждение транспортное средство заболоченный брод траншея вал, бугор удельное давление на грунт грузовой момент Килоньютон на метр градус скат, спуск

ML-107 is intended for skidding trees and stems in half-loaded condition in unprepared cutting areas with stumps and brushwood up to 0,5 m, with continuous cutting at medium and large plantation.

The vehicle can be used in the whole territory of Russia at plain and cross-country area conditions on water-logged soft grounds.

The most output of ML-107 per shift is provided on clear cutting when operating together with felling-bunching machine that forms bunches of volume 1,5 – 2 m3 and at skidding distance to 1000 m.

parameters	values
Type	tracked
Operating mass, t
Maximum depth of ford, m
Width of trench, m	1,9
Height of wall, m	0,8
Specific ground pressure, kg/cm^2	0,44
Maximum speed, km/h
Engine	YAMZ-238D
Maximum power, kW (h. p.)	243 (330)
Loading moment of manipulator, kN-m
The biggest outreach of manipulator, m	8-8,5
Turning angle of manipulator, deg
Maximum angle of lifting, deg
Volume of bunch being skidded, m^3
Maximum angle of roll, deg
