SOME GEOMETRICAL CONSTRUCTIONS

The Slope State Standard 8908 – 81

The slope characterizes inclination of one line or a plane according to the other (fig.1.21)

To mark the slope on a drawing a sign or is put before a size number, where Н is a font size. Slope examples are shown on figure 1.22.

	Figure 1.22 – The examples of slope

A taper is defined as unit alteration in a specified length measured along the axis in case of a shaft and a base line or a center line in case of flat pieces as shown in Fig. 1.23.

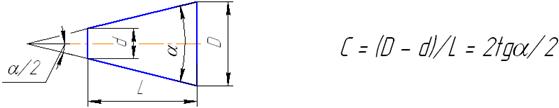

The taper is the correlation of difference of diameters of two cone cross-sections toward distance between them (fig.1.23).

	Figure 1.23 – The calculation of taper

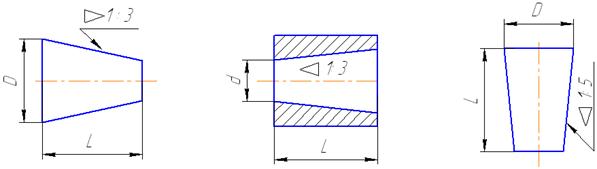

To mark the taper on a drawing a sign or is used which is put before a dimension (fig.1.24).

Figure 1.24 – The examples of taper

1. What are basic formats according to the State Standard?

2. What kind of scales do you know?

3. When are linear and angular sizes used?

4. What types dimensioning on a drawing do you know?

5. How are slope and taper marked?
