A WARNING. Be sure to install the plug in the drain hose after draining

Fuel Tank

Be sure to install the plug in the drain hose after draining. Oil could drain from the open hose and get on the tires which could cause an accident and injury.

Топливная система 3-21

Fuel Tank Removal

Gasoline is extremely flammable and can be ex­plosive under certain conditions. Turn the ignition switch OFF. Do not smoke. Make sure the area is well-ventilated and free from any source of flame or sparks; this includes any appliance with a pilot light.

• Remove:

Side Covers (see Side Covers Removal in the Frame

chapter)

Seat (see Seat Removal in the Frame chapter)

• Turn the fuel tap to the ON or RES position.
Remove the fuel tank mounting bolts [A].

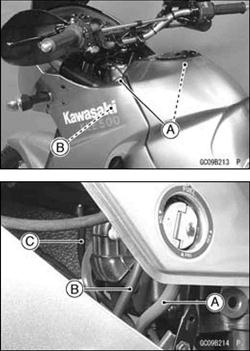

• Remove the lower fairing mounting screws [A], stoppers [B] and free the fuel tank from the fairings.

• Pull the fuel tap outlet hose [A] and vacuum hose [B] off the tap. Pull the over flow drain hose [C] off the fuel tank.

• Removethefueltank.

•_○DP lraacine tahesufuitaebl lteancko.ntainer under the fuel tank. ○Turn the fuel tap to the PRI position to drain the fuel into the container.

3-22 Топливная система
