When cleaning the radiator with steam cleaner, be careful of the following to prevent radiator damage

CAUTION

Radiator, Radiator Fan

COOLING SYSTEM

Do not tear the radiator tubes while straightening the fins.

CAUTION

• If the air passages of the radiator core are blocked more than 20% by unremovable obstructions or irreparable de­formed fins, replace the radiator with a new one.

Radiator Fan Removal • Remove the radiator (see Radiator Removal). Remove the radiator fan mounting screws [A].

1) Keep the steam gun [A] away more than 0.5 m (20 in.) [B] from the radiator core.

2) Hold the steam gun perpendicular to the core sur­face.

3) Run the steam gun horizontally following the core fin direction. Running it vertically may damage the fin.

Filler Neck Inspection

• Remove:

Left Lower Fairing (see Lower Fairing Removal in the frame chapter)

• Check the radiator filler neck for signs of damage.

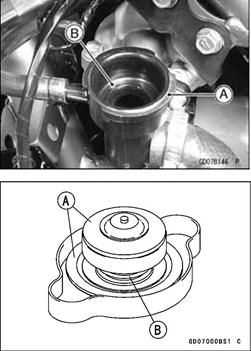

• Check the condition of the top [A] and bottom sealing seats [B] in the filler neck. They must be smooth and clean for the radiator cap to function properly.

Radiator Cap Inspection

• Check the condition of the bottom and top valve seals [A],
valve spring [B] of the radiator cap.

* If any one of them shows visible damage, replace the cap
with a new one.

• Install the cap [A] on a cooling system pressure tester [B].
