Drive Chain
|
|
|
|
FINAL DRIVE
Special Tools and Sealants
FINAL DRIVE 11-5
Specifications
FINAL DRIVE
Exploded View
FINAL DRIVE 11-3
Exploded View
FINAL DRIVE
11-11
11-11
11-11
11-11
11-10
11-10
11-10
11-10
11-9
11-9
11-9
11-8
11-7
11-7
11-6
11-6
11-6
11-6
11-6
11-6
11-6
11-5
11-4
| No. 1 2 3 4 | Fastener | Torque | Remarks | |
| N-m | kgf-m | ft-lb | ||
| Drive Chain Guide Bolts | 1.1 | 95 in·lb | ||
| Engine Sprocket Nuts | EO | |||
| Rear Axle Nuts | ||||
| Rear Sprocket Nuts | 3.4 |
CO: Apply chain oil. EO: Apply engine oil.
G: Apply grease.
L: Apply a non-permanent locking agent.
R: Replacement Parts
| Item | Standard | Service Limit |
| Drive Chain Chain Slack 20-link Length Standard Chain Make Type Link | 35 ∼ 45 mm (1.4 ∼ 1.8 in.) 317.5 ∼ 318.2 mm (12.50 ∼ 12.53 in.) DAIDO KOGYO DID520VL2 108 links | ––– 323 mm (12.7 in.) ––– ––– ––– |
| Sprockets Rear Sprocket Warp | 0.4 mm (0.016 in.) or less | 0.5 mm (0.020 in.) |
|
|
Inside Circlip Pliers: 57001-143

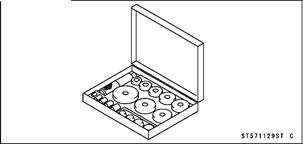

Bearing Driver Set: 57001-1129
|
Drive Chain Slack Inspection
• Refer to the Drive Chain Slack Inspection in the Periodic
Maintenance chapter.
Wheel Alignment Inspection/Adjustment
• Refer to the Drive Chain Slack Inspection in the Periodic
Maintenance chapter.
Drive Chain Wear Inspection
• Refer to the Drive Chain Wear Inspection in the Periodic
Maintenance chapter.
Drive Chain Lubrication
• Refer to the Drive Chain Lubrication in the Periodic Main
tenance chapter.
Drive Chain Removal
• Remove:
Rear Wheel (see Rear Wheel Removal in the
Wheels/Tires chapter)
Swingarm (see Swingarm Removal in the Suspension
chapter)
Engine Sprocket Cover
Drive Chain Guide
• Disengage the drive chain [A] from the engine sprocket
[B], and take it off the chassis.
Drive Chain Installation
• Engage the drive chain with the engine sprocket.
• Install:
Swingarm (see Swingarm Installation in the Suspension
chapter)
Rear Wheel (see Rear Wheel Installation in the
Wheels/Tires chapter)
Engine Sprocket Cover
Drive Chain Guide
Torque-Drive Chain Guide Bolts: 11 N-m (1.1 kgf-m, 95 in-lb)
• Adjust the chain slack after installing the chain (see Drive
Chain Slack Adjustment in the Periodic Maintenance
chapter).
|
|
|
|
|
