CAUTION. ODo not mix up the ignition timing marks with the top mark T [C]

Ignition System

ELECTRICAL SYSTEM 16-37

NOTE

O Do not mix up the ignition timing marks with the top mark "T" [C].

• If the ignition timing is incorrect, inspect the IC igniter and
the crankshaft sensor.

Spark Plug Removal/Installation

• Refer to the Spark Plug Replacement in Replacement
Parts in the Periodic Maintenance chapter.

Spark Plug Gap Inspection

• Refer to the Spark Plug Gap Inspection in the Periodic
Maintenance chapter.

IC Igniter Removal

• Remove the seat (see Seat Removal in the Frame chap­ter).

• Slide the rubber IC igniter cover [A].

• Disconnect the IC igniter connectors [B], and remove the igniter [C].

IC Igniter Inspection

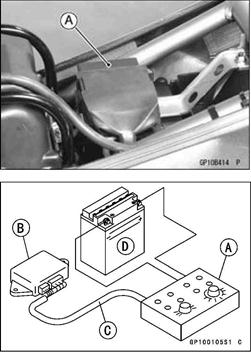

When inspecting the IC igniter [A], observe the fol­lowing to avoid damage to the IC Igniter. Do not disconnect the IC igniter with the ignition switch on. This may damage the IC igniter. Do not disconnect the battery leads while the en­gine is running. This may damage the IC igniter.

• To examine the condition of the igniter, connect the igniter
checker to the igniter as shown.

Special Tools-Igniter Checker Set: 57001-1378 [A]

Wiring Harness Adapter, #14: 57001-1381 [C]

IC Igniter [B] Battery [D] OSet the select knob to position “A”.
