B Sealant application details VVT-i engines

Non-VVT-i engines

On 1.6 litre Non-VVT-i engines, unbolt the block-to-transmission brace

A Sealant application details Non-VVT-i engines

12.9b On VVT-i engines, pull down the plastic cover slotted into the engine block it securely on axle stands (see Jacking and vehicle support).

3 Remove the two splash shields under the engine.

4 Drain the engine oil and remove the oil filter

(see Chapter 1). Remove the oil dipstick.

5 Disconnect the electrical connector to the oxygen sensor (see Chapter 4B).

6 Remove the two nuts retaining the front exhaust pipe to the exhaust manifold, then the two bolts/nuts connecting the pipe to the rear of the exhaust system.

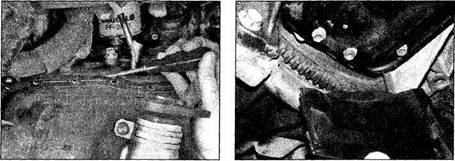

7 Remove the two front bolts of the longitudinal chassis brace and the two nuts securing the radiator side engine mounting (see illustration). For better access for sumpremoval, you'll have to insert a large lever bar between the brace and the chassis to lever the brace down.

8 On 1.6 litre engines, unbolt and remove the block-to-transmission brace (see illustration).
