Throttle Cable Inspection

Throttle Grip Free Play Adjustment

Throttle Grip Free Play Inspection

Throttle Grip and Cables

Special Tools

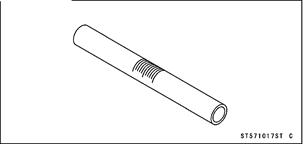

Fuel Level Gauge: 57001-1017

Carburetor Drain Plug Wrench, Hex 3: 57001-1269

3-8 Топливная система

Throttle Cable Inspection

• Refer to the Throttle Cable Inspection in the Periodic
Maintenance chapter.

• Refer to the Throttle Cable Inspection in the Periodic
Maintenance chapter.

• Refer to the Throttle Cable Inspection in the Periodic
Maintenance chapter.

Throttle Cable Lubrication

Whenever the throttle cables are removed, lubricate the throttle cables as follows:

• Apply a thin coating of grease to the throttle cable lower
ends [A].

• Lubricate the throttle cable with a penetrating rust in­hibitor.

Throttle Cable Removal

• Remove the handlebar cover mounting bolt and nut.

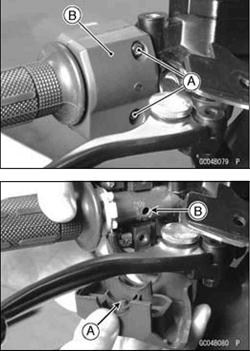

• Remove the right switch housing screws [A], and split the switch housing [B]. Remove the throttle cable.

Throttle Cable Installation

• Fit the throttle cables into the right switch housing, assem­ble the switch housing.

○Install the switch housing cap aligning the projection [A] with the hole on the handlebar [B].
