Carburetors. Gasoline is extremely flammable and can be ex­plosive under certain conditions

A WARNING

Carburetors

Carburetor Removal

Gasoline is extremely flammable and can be ex­plosive under certain conditions. Turn the ignition switch OFF. Do not smoke. Make sure the area is well-ventilated and free from any source of flame or sparks; this includes any appliance with a pilot light.

Remove: Side Covers (see Side Cover Removal in the Frame chapter)

Seat (see Seat Removal in the Frame chapter) Fuel Tank (see Fuel Tank Removal) Throttle Cable Lower Ends [A] Choke Cable Lower End [B] Air Cleaner Housing (see Air Cleaner Housing Removal)

• Loosen:

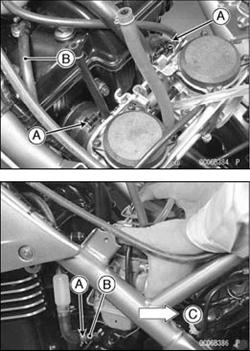

Carburetor Clamp Screws [A] Slide up the clamp and pull up the vacuum hose [B].

• Slide the clamps [A] and remove the left and right coolant hoses [B]. Move back the carburetor [C], and remove the carburetor.

Carburetor Installation

• Installation is the reverse of removal.

• Tighten the carburetor holders clamps after inserting the carburetor into the holders enoughly.

Топливная система 3-11

• Install the holder clamps [A] as shown being careful of the screw position and the screw head [B] direction.
