Specifications

Exploded View

Exploded View

Exploded View

Exploded View

1. Throttle Cable (Accelerator)

2. Throttle Cable (Decelerator)

3. Choke Cable

4. Pilot (Slow) Jet

5. Pilot (Slow) Air Screw

6. Float Valve

7. Jet Needle

8. Needle Jet

9. Needle Jet Holder

10. Main Jet

11. Float CL: Apply cable lubricant.

G: Apply grease.

Топливная система 3-3

3-4 Топливная система

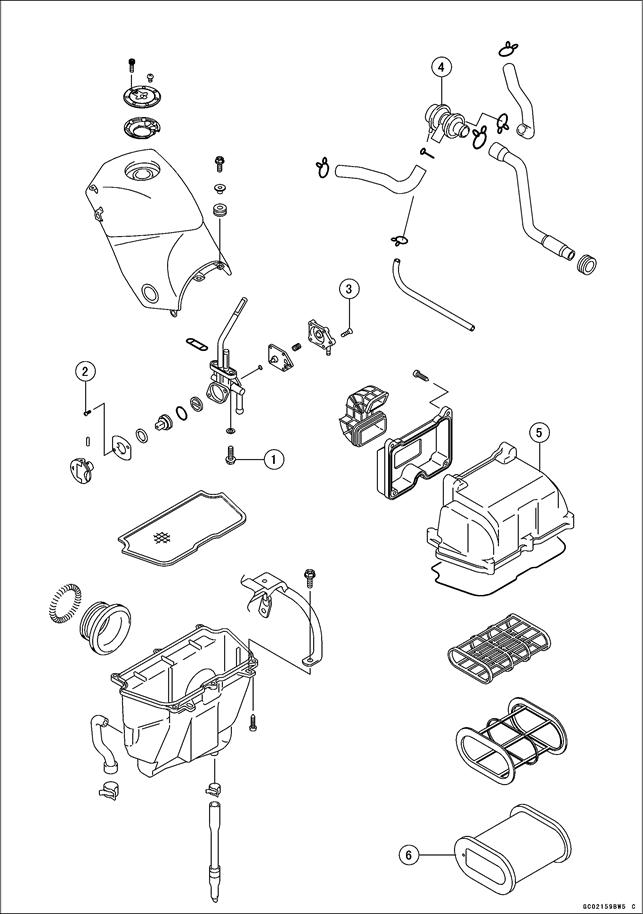

No.	Fastener	Torque	Remarks
N-m	kgf-m	ft-lb
	Fuel Tap Mounting Bolts	5.0	0.51	44 in·lb
	Fuel Tap Cover Screws	0.8	0.08	7 in·lb
	Air Cut Valve Cover Screws	1.0	0.10	9 in·lb

4. Vacuum Switch Valve

5. Air Cleaner Housing

6. Air Cleaner Element

Топливная система 3-5

3-6 Топливная система

Item	Standard
Throttle Grip Free Play	2 ∼ 3 mm (0.08 ∼ 0.12 in.)
Choke Cable Free Play	2 ∼ 3 mm (0.08 ∼ 0.12 in.)
Carburetors Mark, Type Idle Speed Pilot Screw (Turns Out) Synchronization Vacuum Service Fuel Level Float Height Main Jet Main Air Jet Needle Jet Needle Jet Holder Jet Needle Mark Pilot Jet (Slow Jet) Pilot Air Jet (Slow Air Jet) Starter Jet Throttle Valve Angle	KEIHIN CVK34 1 200 ±50 r/min (rpm) I 3/4 ±1/4 2.7 kPa (2 cmHg) or less difference between two carburetors 0.5 mm (0.02 in.) below ∼ 1.5 mm (0.06 in.) above the float bowl mating surface 17 ±2 mm (0.67 ±0.08 in.) Left: #95 Right: #92 #100 – – Left: N60D, Right: N96L #35 #80 #52 II °

Pilot Screw [A] Pilot Jet [B] Jet Needle [C] Needle Jet [D] Pilot Air Jet [E] Main Air Jet [F] Valve Seat [G] Float Valve [H] Needle Jet Holder [I] Main Jet [J]

Топливная система 3-7
