Maintenance Procedure. L (When engine is completely dry)




NOTE

L (When engine is completely dry)

L (When filter is removed)

Engine Oil

Grade: API SE, SF, SG or

API SH or SJ with JASO MA Viscosity: SAE 10W40 Capacity: 2.8 L (When filter is not removed)

○Although 10W-40 engine oil is the recommended oil for most conditions, the oil viscosity may need to be changed to accommodate atmospheric conditions in your riding area.

Oil Filter Replacement

• Support the motorcycle perpendicular to the ground.

• Remove the engine guard.

• Drain the engine oil (see Engine Oil Change).

• Using an oil filter wrench [A] on the oil filter [B], unscrew it.

Special Tool - Oil Filter Wrench: 57001-1249

• Replace the oil filter with a new one.

• Apply engine oil to the gasket before screwing on.

• Tighten the oil filter with an oil filter wrench or tighten it with hands about 3/4 turns after gasket touches the mounting surface of the engine.

Torque - Oil Filter: 17 N·m (1.7 kgf·m, 12.5 ft·lb)

• Pour in the specified type and amount of oil (see Engine Oil Change).

• Thoroughly warm up the engine and check for oil leakage.

Brake Hose Replacement

CAUTION

Brake fluid quickly ruins painted or plastic sur­faces; any spilled fluid should be completely wiped up immediately with wet cloth.

• When removing the brake hose, take care not to spill the brake fluid on the painted or plastic parts.

• When removing the brake hose, temporarily secure the end of the brake hose to some high place to keep fluid loss to a minimum.

• There are washers on each side of the brake hose fitting. Replace them with new ones when installing.


2-46Периодический ремонт



• When installing the hose, avoid sharp bending, kinking, flattening or twisting, and route the hose according to Ca­ble, Wire and Hose Routing in the Appendix chapter.

• Tighten the banjo bolts to the specified torque.

Torque - Brake Hose Banjo bolts: 34 N-m (3.5 kgf-m, 25 ft-lb)

• Bleed the brake line after installing the brake hose.



Brake Fluid Change

• Level the brake fluid reservoir.

• Remove the reservoir cap.

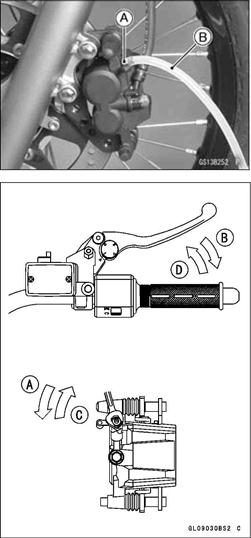

• Remove the rubber cap from the bleed valve [A] on the caliper.

• Attach a clear plastic hose [B] to the bleed valve, and run the other end of the hose into a container.

Fill the reservoir with fresh specified brake fluid.

• Change the brake fluid as follows:

• Repeat this operation until fresh brake fluid comes out from the plastic hose or the color of the fluid changes.
