ELECTRICAL SYSTEM

Switches and Sensors

Radiator Fan Switch Inspection

• Remove the left lower fairing (see Lower Fairing Removal in the Frame chapter).

• Remove the fan switch (see Radiator Fan Switch Re­moval in the Cooling System chapter).

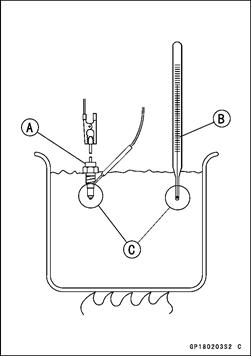

• Suspend the switch [A] in a container of coolant so that the temperature-sensing projection and threaded portion are submerged.

• Suspend an accurate thermometer [B] in the coolant so that the sensitive portions [C] are located in almost the same depth.

OThe switch and thermometer must not touch the con­tainer sides or bottom.

• Place the container over a source of heat and gradually raise the temperature of the water while stirring the water gently.

• Using the hand tester, measure the internal resistance of the switch across the terminals at the temperatures shown in the table.

• If the hand tester does not show the specified values, re­place the switch.

Radiator Fan Switch Resistance Rising temperature:

From OFF to ON at 96 ~ 100°C (205 ~ 212°F)

Falling temperature:

From ON to OFF at 91°C (196°F)

Less than temperature at ON ON: Less than 0.5 Q OFF: More than 1 МП

ELECTRICAL SYSTEM 16-61 Switches and Sensors

Water Temperature Switch Inspection

• Remove the water temperature switch (see Water Tem­perature Switch Removal in the Cooling System chapter).

• Suspend the switch [A] in a container of coolant so that the temperature sensing projection and threaded portion are submerged.

• Suspend an accurate thermometer [B] in the coolant so that the sensitive portions [C] are located in almost the same depth.

OThe switch and thermometer must not touch the con­tainer sides or bottom.

• Place the container over a source of heat and gradu­ally raise the temperature of the coolant while stirring the coolant gently.

• Using the hand tester, measure the internal resistance of the switch across the terminal and the body at the tem­peratures shown in the table.

• If the hand tester does not show the specified values, re­place the switch.

Water Temperature Switch Connections Rising temperature:

From OFF to ON at 113 ~ 117°C (235 ~ 243°F)

Falling temperature:

From ON to OFF at 108°C (226°F) temperature less than ON temperature

OFF: More than 1 МП
