Diagram 2

Diagram 1

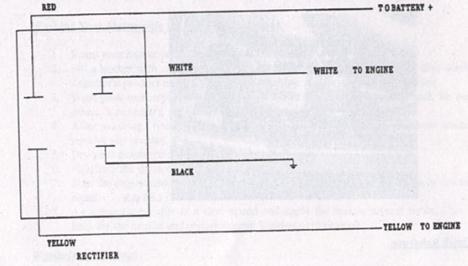

Circuit Diagram

Principle Diagram

Table 1

Technical Specifications

Items	Specifications
Front& rear wheel diameter	Fron19,rear 16Ў±	Front 21Ў±,rear 18Ў±
Seat height	890mm	970mm
Wheel base	1310mm	139mm
Ground clearance	310mm	410mm
Product size	1920ЎБ820ЎБ1060mm	2060ЎБ850ЎБ1240mm
Packing size	1670ЎБ420ЎБ765mm	1770ЎБ420ЎБ820mm

Items	Specifications
Engine	250cc,aircooled,4-stroke	200cc.air cooled, 4 stroke 200cc	150cc,air cooled,4 stroke 150cc
Bore &stroke	67ЎБ65mm	63.5ЎБ62.2mm	62ЎБ49.5mm
Start	Kick + electric	Kick +electric	Kick +electric or kick start only
Ignition	CDI	CDI	CDI
Compression ratio	9.2:1	9.2:1	9.2:1
Transmission	5 speed or 6speed (included neutral gear),international gear5/6
Clutch	Manual
Max power	11.5/6500(1ЎА5ЁG)	10.8/8000(1ЎА5%)	9.3/8500(1ЎА5%)
Torque	17.5/5500(1ЎА5%)	13.8/6500(1ЎА5%)	10.0/7500(1ЎА5%)
Frame &swing arm	Steel	Steel	Steel
Front shock	Reversed front hydraulic shock
Rear shock	Hydraulic shock
Brake	Hydraulic caliper/Disc brake
Spark plug gap and spark plug type	0.6-0.7MM D8EA
Carburetor	PZ30	PZ27	PZ27
Engine &rear sprocket	15/48 teeth (428#)
G.W/N.W	116.5/9©K(19/16) 135/115©K(21/18)	132/112©K(19/16) 135/115©K(21/18)	132/112©K(19/16); 135/115©K(21/18)
Color	Red, blue, green, black, carbon fiber, yellow, orange
Fuel typ	Gasoline92 octane or higher (GB17930-1999)
Engine machine oil	SAE15W40
Idle speed	1500ЎА100rpm
Weight capacity	100©K
Fuel tank capacity	3 lt
Battery	12V/7AH
20FT/40FT/40HQ (19/16)	50PCS/105PCS/105PCS
20FT/40FT/40HQ (21/18)	39PCS/82PCS/99PCS

CIRCUIT DIAGRAM FOR 4 STROKE ENGINE

CIRCUIT DIAGRAM FOR 4 STROKE ENGINE
