WARNING. Maintenance Procedure

Maintenance Procedure

NOTE

When inspecting by running the vehicle, note a surrounding traffic situation enough in the place of safety.

WARNING

Brake Fluid Level Inspection

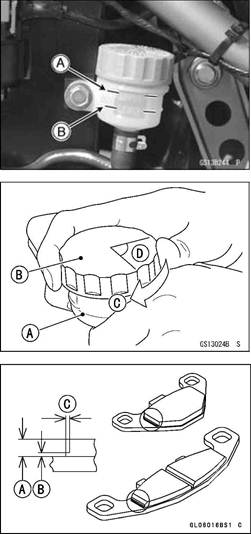

• Check that the brake fluid level in the front/rear brake reservoirs [A] is above the lower level line [B].

○Hold the reservoirs horizontal by raising the motorcycle perpendicular to the ground when checking brake fluid level.

Special Tool - Jack: 57001-1238

Remove the right side cover.

Периодический ремонт 2-29

• If the fluid level is lower than the lower level line, fill the reservoir to the upper level line [A] in the reservoir [B].

Change the brake fluid in the brake line completely if the brake fluid must be refilled but the type and brand of the brake fluid that is already in the reser­voir are unidentified. After changing the fluid, use only the same type and brand of fluid thereafter.

Recommended Disc Brake Fluid
Grade: DOT4

• If the rear brake reservoir cap is open to fill the brake fluid, follow the procedure below to install the cap correctly.

OFirst, tighten the brake fluid reservoir cap [B] clockwise [C] by hand until the resistance is felt fully; then, tighten the cap an additional 1/6 turn [D] while holding the brake fluid reservoir [A] body.

Brake Pad Wear Inspection

In accordance with the Periodic Maintenance Chart, in­spect the brake pads for wear.

• Remove the pads.

• Check the lining thickness [A] of the pads in the caliper.

• If the lining thickness of either pad is less than the service limit [B], replace both pads in the caliper as a set.

Stepped Portion [C]

Толщина Выравнивания колодки
Стандарт: 5.15 мм (0.203 в.)

Сервисный Предел: 1 мм (0.04 в.)

2-30 Периодический ремонт
