Lighting System

ELECTRICAL SYSTEM 16-51

When handling the quartz-hologen bulb, never touch the glass portion with bare hands. Always use a clean cloth. Oil contamination from hands or dirty rags can reduce bulb life or cause the bulb to explode.

• Fit the dust cover [A] with the marked side downward onto the bulb firmly as shown in the figure.

Good [B]

Bad [C] After installation, adjust the headlight aim.

Headlight Unit/Housing Removal

• Remove the left and right lower fairing (see Lower Fairing Removal in the Frame chapter).

• Disconnect the left and right turn signal lead connectors [A].

• Remove the wind shield mounting bolts [B] and wind shield [C].

• Remove the wind shield mounting stay nut [A], and re­move the mounting stay [B] and headlight unit/housing with the upper fairings [C] installed left and right turn sig­nal lights.

• Disconnect the headlight lead couplers [A], city light lead connector [B], and free the headlight unit/housing [C] and upper fairings [D] assembly.

• Remove the 4-bolts [A] and two-screws [B], and separate the headlight unit/housing [C] and upper fairings [D].

Headlight Unit/Housing Installation

• Headlight unit/housing installation is the reverse of re­
moval

City Light Bulb Replacement

• Remove the headlight unit/housing (see Headlight Unit/Housing Removal).

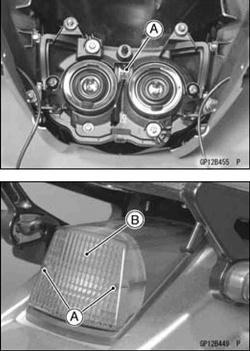

• Pull out the city light socket [A] with the bulb. Remove the bulb and replace it.

Tail/Brake Light Bulb Replacement Remove the tail/brake light lens screws [A] and lens [B].
