Testing Turn Signal Relay

Lighting System

ELECTRICAL SYSTEM

• Insert the new bulb by aligning the pins [A] with the grooves [B] in the walls of the socket so that the pin closest to the bulb base is to the upper right. Turn the bulb clockwise pushing it into the bulb base.

Tail/Brake Light Lens Removal/Installation

• Be careful not to overtighten the lens mounting screws.

Turn Signal Light Bulb Replacement

• Refer to the Tail/Brake Light Bulb Replacement section.
OBe careful not to overtighten the lens mounting screws.

Turn Signal Relay Inspection

• Remove the right side cover (see Side Cover Removal in the Frame chapter).

• Connect one 12V battery and turn signal lights as indi­cated in the figure, and count how many times the lights flash for one minute.

Turn Signal Relay [A] Turn Signal Lights [B] 12V Battery [C]

• If the lights do not flash as specified, replace the turn sig­
nal relay.

Load	Flashing times (c/m*)
The Number of Turn Signal Lights	Wattage (W)
1**		140 ~250
		75 ~95

*: Cycle(s) per minute **: Corresponds to “light burned out”.

Lighting System

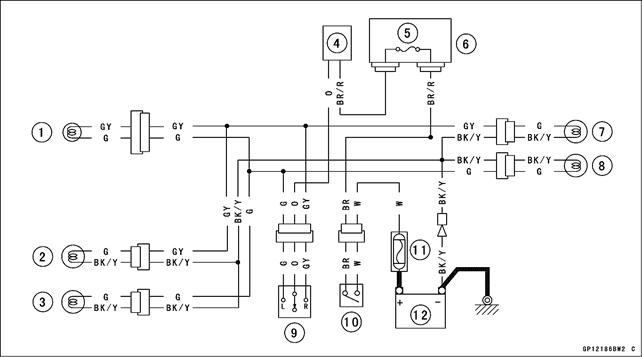

Turn Signal Light Circuit

Turn Signal Indicator Light

Front Right Turn Signal Light

Front Left Turn Signal Light

Turn Signal Relay 10 W

Turn Signal Fuse 10 A

Junction Box

Rear Right Turn Signal Light

Rear Left Turn Signal Light

Turn Signal Switch

Ignition Switch

Main Fuse 30 A

Battery 12 V 10 Ah
