Turn on the machine

Basic Operation

Control Panel

Item of the component

Names and functions of the parts

Chap. 5 Operating Instruction

_0Type

1. Left cover 9. Controlling panel

2. Metal roller 10. Right cover

3. Cutter bracket 11. Pillar

4. Cutter holder 12. Serial port

5. Carriage 13. Power socket

6. Cover of guide 14. Fuse socket

7. Pinch roller 15. Power switch

8. position setting knob

_1 Types

1. Left cover 10. Right cover

2. Metal roller 11. Pillar

3. Cutter bracket 12. Power socket

4. Cutter holder 13. Fuse socket

5. Carriage 14. Power switch

6. Cover of guide 15.USB to serial adapter port (optional)

7. Pinch roller 16. Serial port

8. Controlling panel 17. Parallel port (optional)

9. Position setting knob

_0 Type

_1 Type

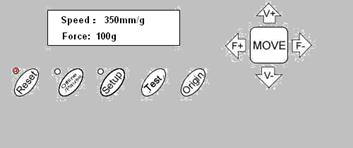

1. LCD display 6. origin setting button

2. Reset 7. Force +

3. Offline / Pause 8.Value –

4. Setup 9.Value +

5. Test 10. Force -

1.. Check whether the power is in OFF position

2.. Plug the power cable into the power socket of the machine, and then press the switch on / off on the left

3. LCD in the control panel is on and displays the initializing process and shows following information

4 When the initializing is over, the red light is on, the machine is in online state and connectable with the computer to be operable
