REAR WHEEL AND BRAKE DISC CHAS

CHASSIS

REAR WHEEL AND BRAKE DISC CHAS

J-5

FRONT WHEEL AND BRAKE DISC CHAS



5. Check:

• Wheel static balance





************************************************************ Checking steps:

Turn the wheel so that it comes to each point as shown.

Check that the wheel is at rest at each point. If not, readjust the front wheel static balance.

************************************************************

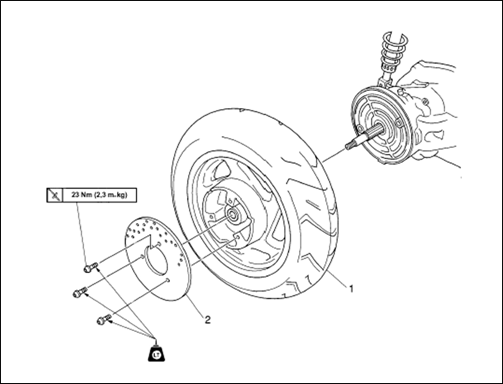

REAR WHEEL AND BRAKE DISC





Order	Job name/Part name	Quantity	Remarks
	Rear wheel and brake disc removal		Refer to “REAR SHOCK ABSORBER
Swingarm
	AND SWINGARM” section.
Rear wheel
	Brake disc
Reverse the removal procedure for
installation.







CHECKING THE BRAKE DISC

1. Check:

• brake disc

Damage / galling —( Replace

2. Measure:

• brake disc deflection

Out of specification —( Correct the brake disc deflection or replace the brake disc.



	Brake disc deflection limit (maximum)
0,2 mm

3. Measure:

• brake disc thickness

Measure the brake disc thickness at a few diffe- rent locations.

Brake disc thickness limit (minimum) 4,5 mm

Out of specification —( Replace
